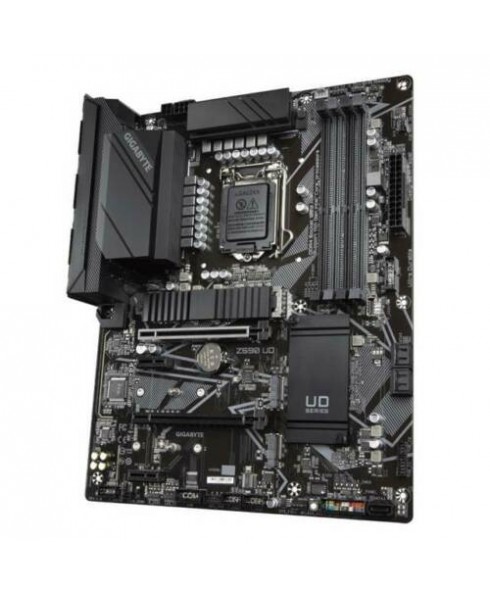

Gigabyte Technology Z590 UD LGA 1200 Intel Z590 PCIe 4.0 ATX Motherboard

Z590 UD

Be the first to review this product

Out of stock

$199.00
CPU
  • LGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors - * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)

Chipset
  • Intel® Z590 Express Chipset
Memory
  • 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) /4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
  • 10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
*(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
**(Graphics specifications may vary depending on CPU support.)

Audio
  • Realtek® audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • Support for S/PDIF Out
LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
  • Intel® Wi-Fi AC 9462:
    1. Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 1x1 11ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
** Only for the Z590 UD AC rev. 1.0.
  • Intel® Wi-Fi AC 9560:
    1. Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 2x2 11ac wireless standard and up to 1.73 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
** Only for the Z590 UD AC rev. 1.1.

Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16) - * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • (The PCIEX16 slot conforms to PCI Express 4.0 standard.) *Supported by 11th Generation processors only.
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 2 x PCI Express x1 slots
  • (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  • CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) - *Supported by 11th Generation processors only.
  • Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
  • 5 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Intel® Optane™ Memory Ready
